Excalibur v0.25.0 Released!

Published on Sunday, October 3rd, 2021

game dev excalibur typescript

Excalibur Text Logo

After a year of work a lot of great additions and improvements have made it into Excalibur, and we are making good progress towards our v1.0 release! Check the roadmap for our current plans. It's hard to believe how different things are now since the first commit of Excalibur (back when it was called GameTS)!

Excalibur started as a tech demo in a presentation to show how powerful TypeScript can be. The engine has come so far since then, it's really amazing!

We are really excited to share this release with you! This release contains over 30 bug fixes and 50 new features! It's been a labor of love over the last year by many people, and we have some big features to share.

Check out the official release!

> npm install [email protected]

Performance

There is a combination of features (mentioned below) that resulted in big performance gains. Across the board, there's been a dramatic increase in what Excalibur can do in v0.25.0 vs v0.24.5.

I want to highlight the graphics performance specifically:

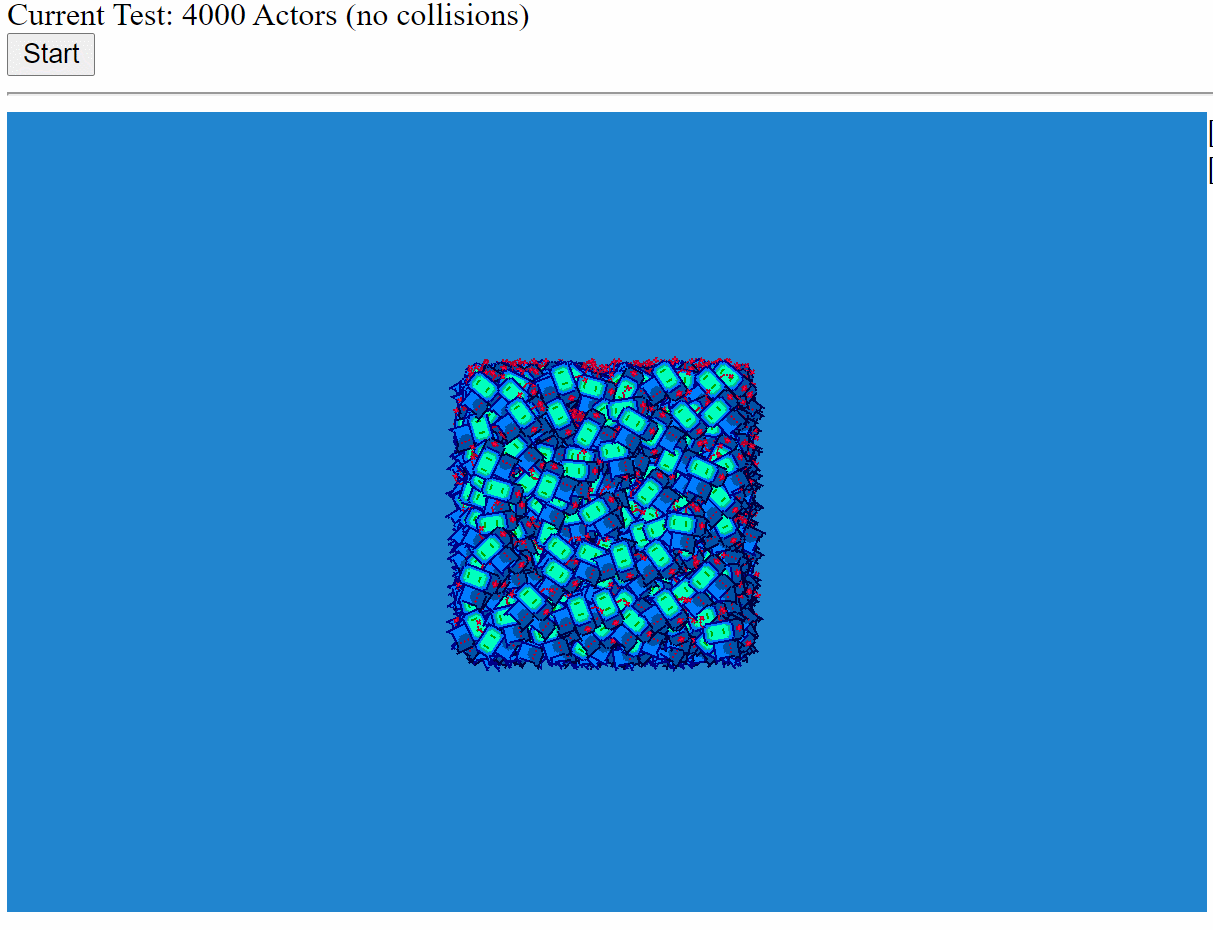

Graphics Benchmark test gif

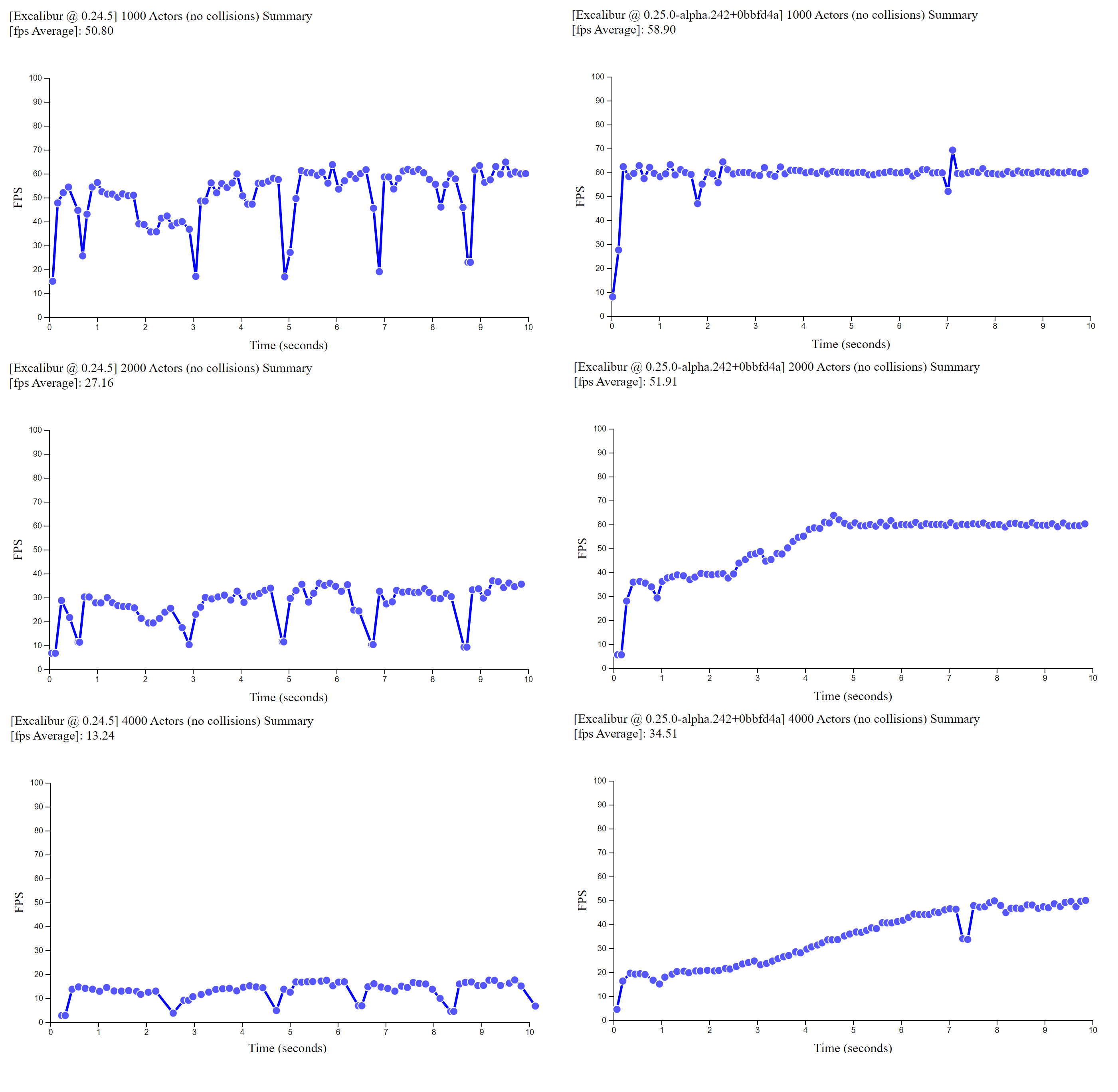

There is much better performance across the board with a higher baseline fps in v0.25.0 for the same number of actors. You'll notice that FPS improves over time as more actors are offscreen in v0.25.0 compared to v0.24.5.

Graphics Side by side comparison of v0.24.5 and v0.25.0 FPS over time

This benchmark was performed on my Surface Book 2 with the power plugged in, in Chrome.

Plugin Strategy Going Forward

We are adopting a similar versioning strategy to Angular, during pre-1.0. All plugins compatible with the core library will share the same prefix through the minor version. - Example: If core is [email protected] then the plugins that support this version are @excaliburjs/[email protected].

DisplayMode Updates

Excalibur DisplayModes have been refactored and renamed to clarify their utility.

Refactor to Entity Component System (ECS) Based Architecture

The core plumbing of Excalibur has been refactored to use an ECS style architecture. With this change developers using Excalibur do not need to know or care about the this underlying change to ECS if they don't want too.

What does this mean? Roughly speaking ECS architecture breaks down like this:

Actor, Scene, and Engine remain the friendly interface to build games, just implemented differently under-the-hood. The reason for the change was to break down growing and complex logic that had accumulated in the Actor and Scene implementnation into Components and Systems for maintainability. This change increases the flexibility of Excalibur to add new novel behavior directly into the core loop with custom components ones if desired.

Excalibur does not have the purest implementation of an ECS by design, the built in components are more than just data. The built in components do provide behavior, convenience features, and helpers to maintain our core mission of keeping Excalibur easy to use. The Excalibur core team goal with ECS is flexibility and maintainability, not performance. (read more)

A quick example of using the new ECS features

class SearchComponent extends ex.Component<'search'> {
    public readonly type = 'search'
    constructor(public target: ex.Vector) {
        super();
    }
}

class SearchSystem extends ex.System<ex.TransformComponent | SearchComponent> {
    // Types need to be listed as a const literal
    public readonly types = ['ex.transform', 'search'] as const;

    // Lower numbers mean higher priority
    // 99 is low priority
    public priority = 99;

    // Run this system in the "update" phase
    public systemType = ex.SystemType.Update

    private _searchSpeed = 10 // pixels/sec

    public update(entities: ex.Entity[], delta: number) {
        for (let entity of entities) {
            const target = entity.get(SearchComponent)!.target;
            // ex.TransformComponent is a built in type
            const transform = entity.get(ex.TransformComponent) as ex.TransformComponent;

            const direction = target.sub(transform.pos);
            const motion = direction.normalize().scale(this._searchSpeed);

            // Moves these entities towards the target at 10 pixels per second
            transform.pos = transform.pos.add(motion.scale(delta / 1000))
        }
    }
}

// Actors come with batteries included built in features
const actor = new ex.Actor({
    pos: ex.vec(100, 100),
    width: 30,
    height: 30,
    color: ex.Color.Red
});
actor.addComponent(new SearchComponent(ex.vec(400, 400)));

// Create a scene with your new system
const scene = new ex.Scene();
scene.world.add(new SearchSystem());
scene.add(actor);

Collision System Improvements

The collision system has been significantly overhauled to improve the quality of the simulation and the stability of collisions. The core simulation loop "solver" has been redone to use an iterative impulse constraint solver, which provides a robust method of computing resolution that has improved performance and stability.

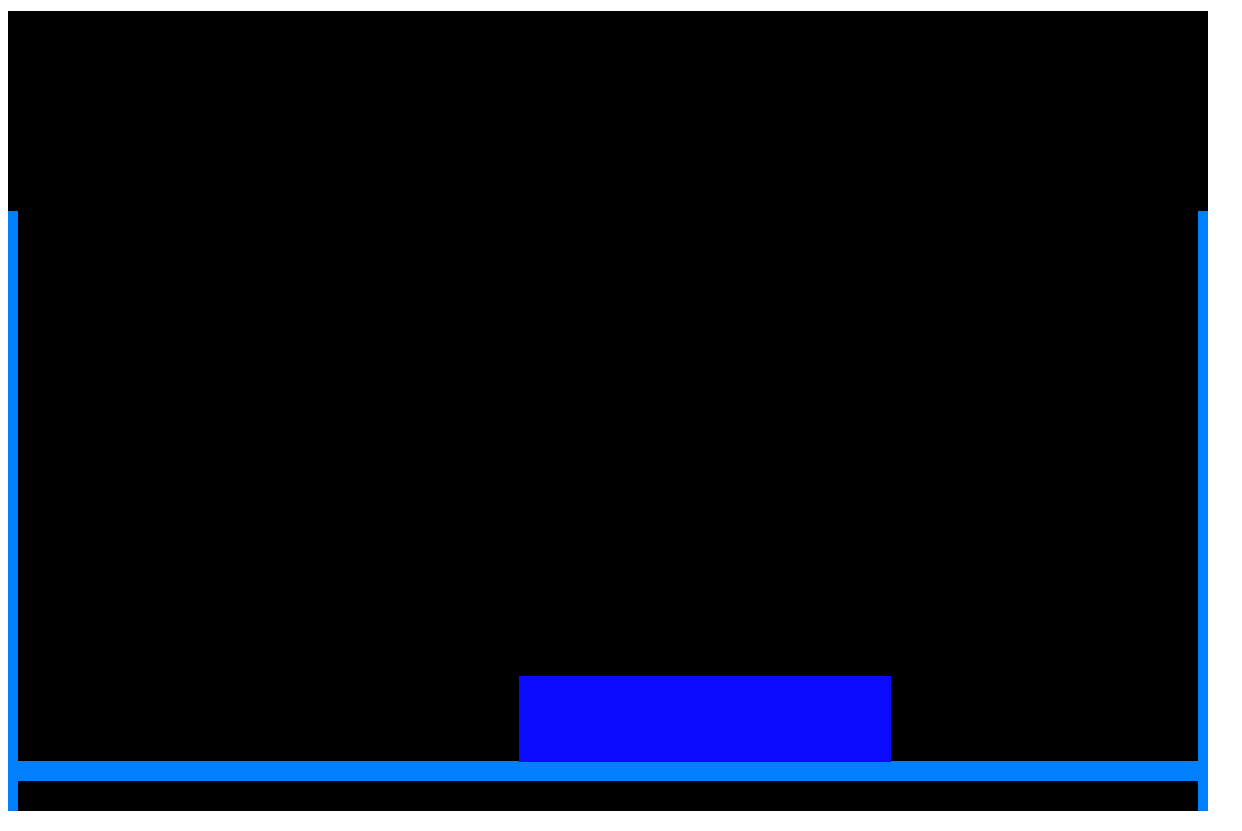

Collision intersection logic has now also been refactored to report multiple contact points at once. Multiple contacts improves the stability of stacks of colliders over single contact collisions (which can result in oscillations of boxes back and forth).

stacks of boxes

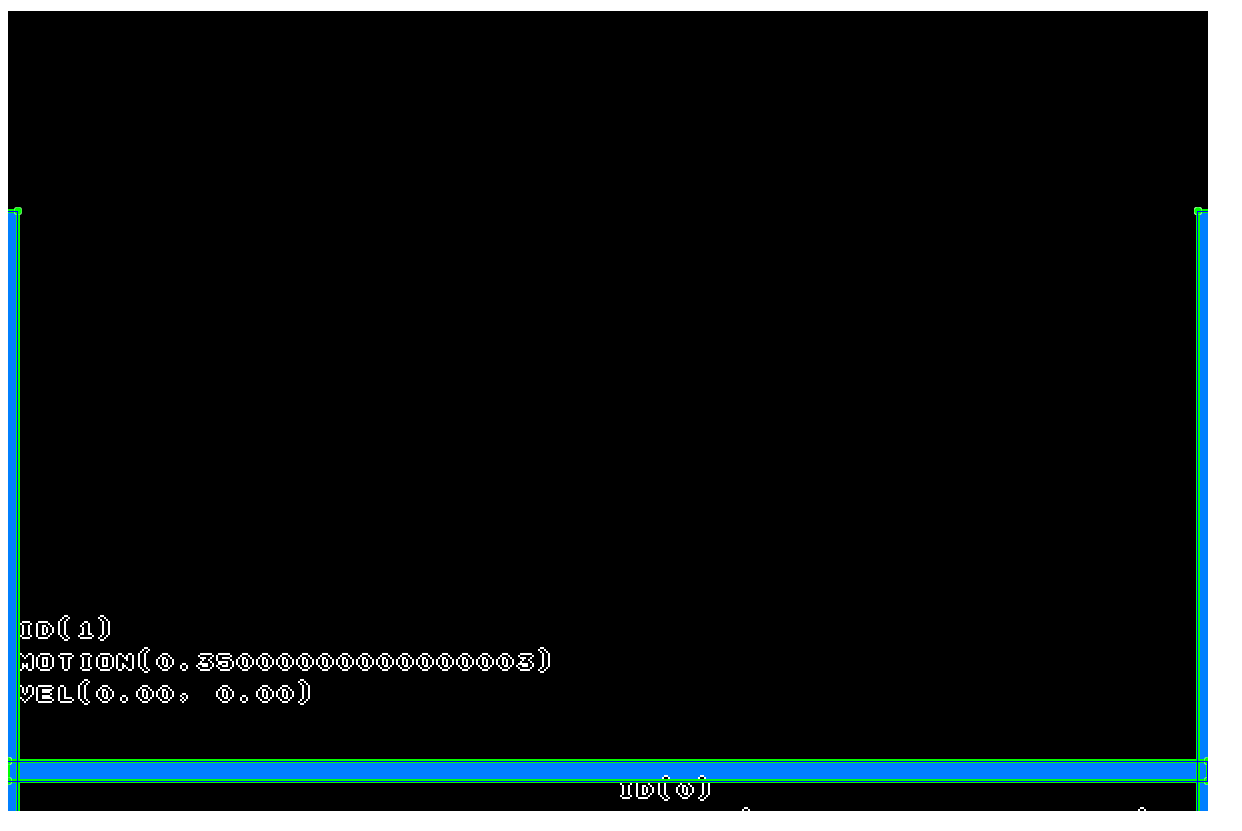

Colliding bodies can now optionally go to sleep. This relieves some of the pressure on the collision solver and improves the stability of the simulation by not moving these objects if they don't need to move. Colliders can be started asleep before a player in a game might interact with them

stacks of boxes sleeping

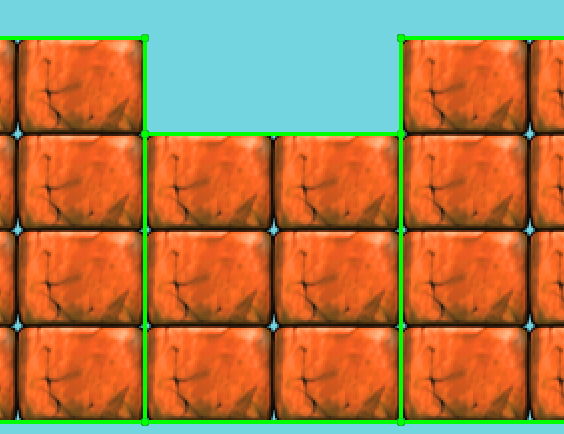

New CompositeColliders now make it possible to combine Excalibur Collider primitives (PolygonCollider, CircleCollider, and EdgeCollider) to make any arbitrary collision geometry. These new composite colliders power the new TileMap cell collisions and also power the new ex.Shape.Capsule(width, height) collider.

Tile Map Geometry

Capsule collider is a useful geometry tool for making games with ramps or slightly jagged floors you want a character to glide over without getting stuck. This collider also helps with any "ghost collisions" that you might run into under certain conditions in your game.

Capsule Shape

CollisionGroups allow more granular control over what collides above and beyond collision type. Collsion groups allow you to create named groups of colliders like "player", "npc", or "enemy". With these groups, you can specify that players and enemies collide, player and npcs don't collide, and that npcs and enemies don't collide without needing to implement that logic in a collision event handler.

// Create a group for each distinct category of "collidable" in your game
const playerGroup = ex.CollisionGroupManager.create('player');
const npcGroup = ex.CollisionGroupManager.create('npcGroup');
const floorGroup = ex.CollisionGroupManager.create('floorGroup');
const enemyGroup = ex.CollisionGroupManager.create('enemyGroup');

// Define your rules
const playersCanCollideWith = ex.CollisionGroup.collidesWith([
  playersGroup, // collide with other players
  floorGroup, // collide with the floor
  enemyGroup // collide with enemies
]);

const player = new ex.Actor({
  collisionGroup: playersCanCollideWith
});

New Graphics System

The new Excalibur graphics system has been rebuilt from the ground up with speed in mind. It is now built on a WebGL foundation with a built-in batch renderer. This means that Excalibur will batch up draw commands and submit the minimum amount of draw calls to the machine when the screen is updated. This dramatically improves the draw performance and also the number of things wec can display on screen (as noted in the benchmarks earlier).

For drawing hooks the ExcaliburGraphicsContext is replacing the browser CanvasRenderingContext2D. If you still need to do some custom drawing using the CanvasRenderingContext2D the new Canvas graphic can help you out.

const canvas = new ex.Canvas({
  cache: true, // If true draw once until flagged dirty again, otherwise draw every time
  draw: (ctx: CanvasRenderingContext2D) => {
    ctx.fillStyle = 'red';
    ctx.fillRect(0, 0, 200, 200);
  }
});

actor.graphics.use(canvas);

TileMap and Tiled updates

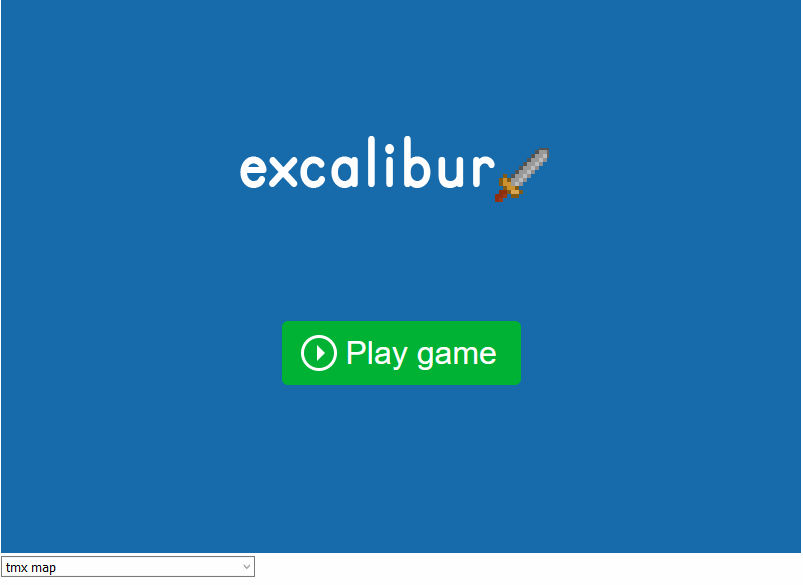

Tiled is easily one of the best tools out there for building and designing levels for your game. It has certainly been a valuable tool in our toolbox. We have doubled down on our efforts to provide a first class Tiled integration with Excalibur via the excaliburjs/plugin-tiled. This work also involved a few improvements to the TileMap to improve it's graphics API and collision performance.

Check out the Tiled Excalibur Plugin!

Example of map built in Tiled

Documentation

A lot of time was spent reviewing and improving our documentation. Part of this work was ensuring that the snippets don't go stale over time by building them in GitHub Actions.

Please check out the new and shiny doc site with new code examples excaliburjs.com!

Testing

The Excalibur core repo now has WallabyJS enabled to improve the VS Code test development and debugging experience. Wallaby is a paid tool; because of that Excalibur will always also support the Karma based testing framework for official tests.

A useful update to excalibur-jasmine allows async matchers, which greatly simplifies checking image diffs in Jasmine unit tests.

it('should match images', async () => {
  let engine = new ex.Engine({width: 100, height: 100});
  await expectAsync(engine.canvas).toEqualImage('images/expectedcanvas.png', .99);
});

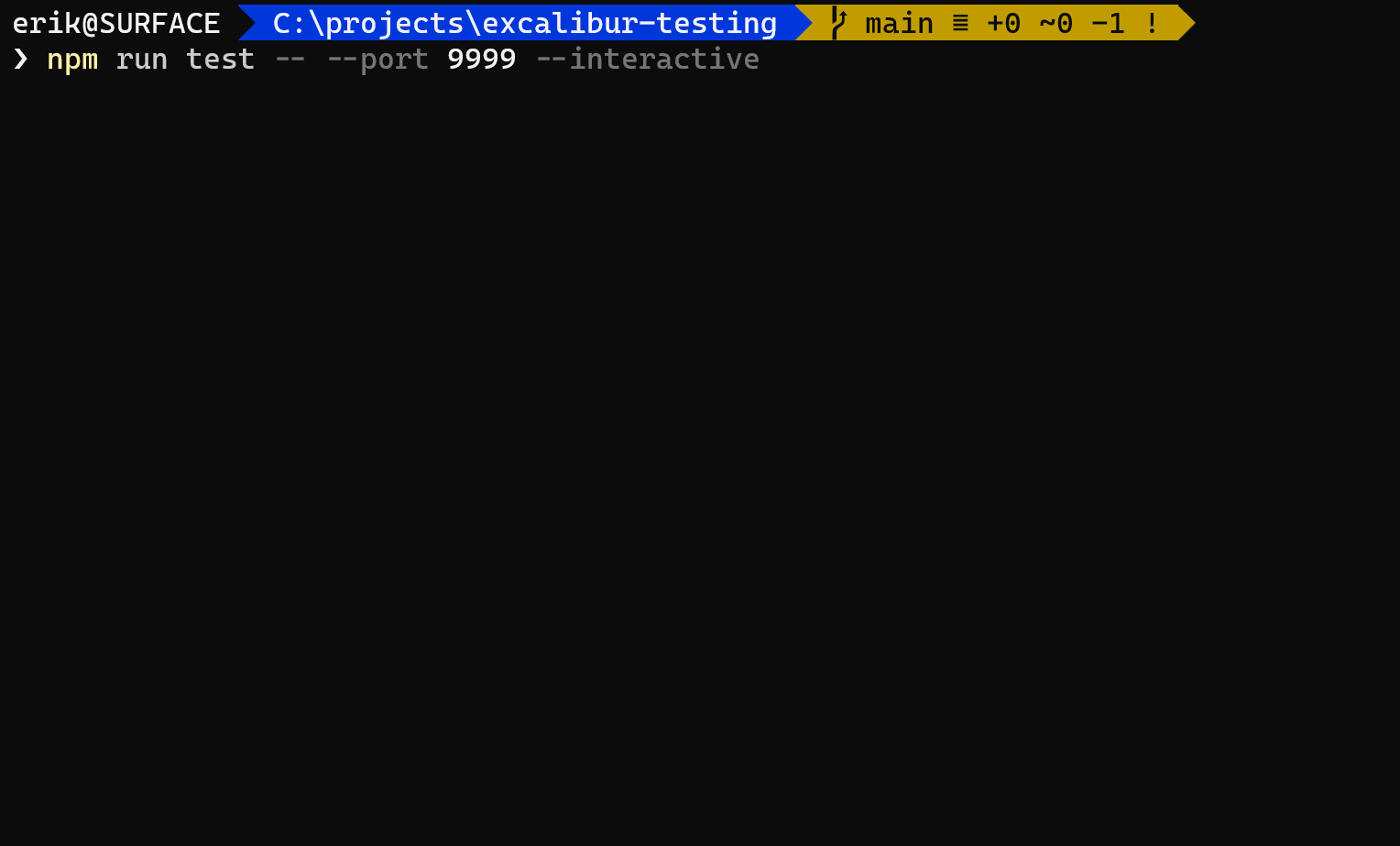

A brand new integration test utility has been created called @excaliburjs/testing, which provides a quick way to drive Excalibur games with Puppeteer and do image-based snapshot testing.

// excalibur testing

test('An integration test', async (page) => {
    // Check for the excalibur loaded page
    await expectLoaded();

    // Compare game to expected an expected image
    await expectPage('Can check a page', './images/actual-page.png').toBe('./images/expected-page.png');

    // Use puppeteer page object to interact
    await page.evaluate(() => {
        var actor = ((window as any).actor);
        actor.pos.x = 400;
        actor.pos.y = 400;
    });

    // Compare game to a new expected image
    await expectPage('Can move an actor and check', './images/actual-page-2.png').toBe('./images/expected-page-2.png');
});

Excalibur Image snapshot testing

Templates

There are a lot of different ways to build web apps; we've created repo templates for some of the popular ones:

Samples

Community

Contributors:

Breaking Changes

There are some breaking changes in v0.25.0 from v0.24.5; see thechangelog and release notes for more specifics, but they generally fall into these categories. See the migration guide for guidance

Next on the horizon looking towards "v1"

I want to thank everyone who helped make this version of Excalibur possible. A lot of effort went into it and I'm really proud of what we achieved.

-Erik
